Category Archives: Connectors

Plugs, Connectors and cables

DIN Female 8-pin Plug For MCL 7220235

13 Friday Mar 2020

Posted by beoparts in Connectors

≈ Comments Off on DIN Female 8-pin Plug For MCL 7220235

DIN Female 8-pin Plug For MCL 7220235
Original part.
Unused in original packing.
Condition EX
27,2
Available: 2 pcs.

7220235a
7220235b

Antenna Plug 240/300 Ohms FM/VHF IEC45316eco

25 Tuesday Sep 2018

Posted by beoparts in Connectors

≈ Comments Off on Antenna Plug 240/300 Ohms FM/VHF IEC45316eco

Antenna Plug 240/300 Ohms FM/VHF IEC45316eco
This is the “economic” version of the IEC45316 plug.
(The “deluxe” version can be found here).
Unused old stock.
Often used for twin-lead cable and dipole aerials but will also work with other types.
Fits many of the 1960s and 1970s tuners and receivers, Beomaster 1200, 3000, 5000 etc.
Cable screw mount (no soldering).
Condition EX
Part# IEC45316eco
Available: Yes
Price EUR 10 plus postage

Antenna Aerial Plug 240/300 Ohms FM/VHF IEC45316 7221027

08 Sunday Mar 2015

Posted by beoparts in Connectors

≈ Comments Off on Antenna Aerial Plug 240/300 Ohms FM/VHF IEC45316 7221027

Antenna Aerial Plug 240/300 Ohms FM/VHF IEC45316
This is the “deluxe” version of the IEC45316 plug.
(The “economy” version can be found here).
Lightly used or unused old stock.
Often used for twin-lead cable and dipole antennas but will also work with other types.
Cable screw mount (no soldering).
Condition EX
IEC45316 standard plug.
Part# 7221027
6,4
Available : Yes
Price EUR 14 plus postage.

Antenna Plug Spade Pair

08 Sunday Mar 2015

Posted by beoparts in Connectors

≈ Comments Off on Antenna Plug Spade Pair

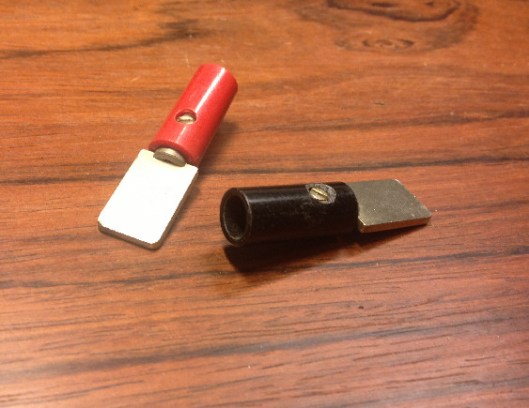

Antenna Plug Spade Pair
Used
Generally used for AM and FM antennas in B&O units from the 1930s until the mid-1960s.
Cable screw mount (no soldering).
Pair: One red, one black. (Also available separately – ask!).
The design and finish of the insulated handles can vary a little but pairs will be of apprx. identical design.
Condition EX
Little wear from previous use.
Part# Spadepair
6,11
Available: Yes

Plug For Gramophone Mono (Vintage Type)

08 Sunday Mar 2015

Posted by beoparts in Connectors

≈ Comments Off on Plug For Gramophone Mono (Vintage Type)

Plug For Gramophone Mono (vintage type)
Used.
Mono type.
Bakelite housing.
Generally used for connecting a record player (gramophone) to a receiver/amplifier.
Cable screw mount (no soldering).
Condition EX
Little marks from previous use/storage.
Bakelite housing color may vary.
Part# phonoplugmono
6,1

phonoplugmonoa
phonoplugmonob

Plug For Speaker (Vintage Type)

08 Sunday Mar 2015

Posted by beoparts in Connectors

≈ Comments Off on Plug For Speaker (Vintage Type)

Plug For Speaker (vintage type)
Used.
Bakelite housing.
Generally used by B&O for connecting (external) speaker to a receiver/amplifier from the 1930s til the mid-1960s.
Cable screw mount (no soldering).
Condition EX
Little marks from previous use/storage.
Bakelite housing color may vary.
Part# speakerplug
6,1

speakerpluga
speakerplugb
