Beomaster 3000 Schematics Circuit Diagram 3532052
Sits in an envelope under the top cover inside the Beomaster for repairs and service reference.
Note: Parts guides show this as part# 3532053, but that would also include the envelope, which is not included here. Condition EX
Part# 3532052
11,1

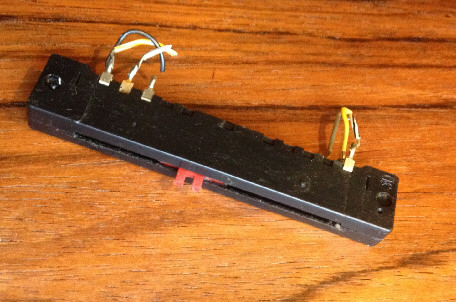

Beomaster 3000 4000 Sliding Potentiometer Balance 5310027
Used.
Tested working 2/02
Condition EX
Part# 5310027
11,1

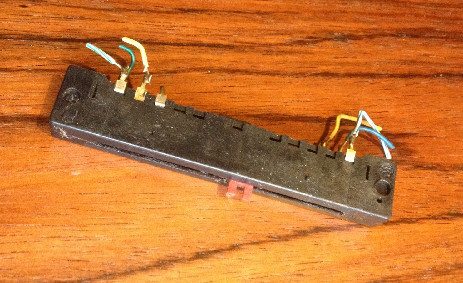

Beomaster 1001 1200 3000 4000 Sliding Potentiometer Treble 5310026
Used.
Tested working 2/02
Condition EX
Part# 5310026
11,1
10,2
Available: Yes

Beomaster 1001 1200 3000 4000 Sliding Potentiometer Bass 5310025
Used.
Tested working 2/02
Condition EX
Part# 5310025
10,2
11,1
Available: Yes

Beomaster 3000 Holding Spring For Sliding Potentiometers 2816034 Holds potentiometers to front baffle.
Used.
Condition EX
Part# 2816034
11,6

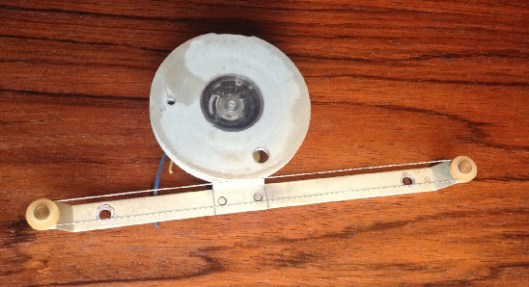

Beomaster 3000 FM Tuning Potentiometer & Pulley & String 5300056 Complete assy.
Includes potentiometer, pulley, dial string & mounting bracket. Used.
Tested working 2/02
Condition EX
Part# 5300056
11,1

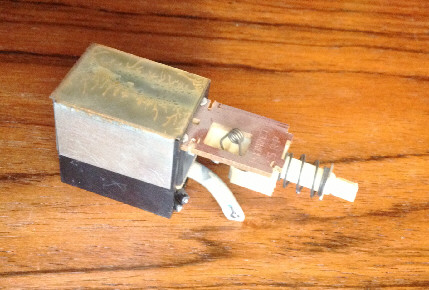

Beomaster 3000 Mains Power Switch 7450010
Used.
Tested working 2/02
Fits Beomaster 3000, 3000-2, 4000 and Beocenter 3500.
Fits also Beomaster 4400 before serial number 1524001
Condition EX
Part# 7450010
11,1
Available: Yes

Beomaster 3000 Input Output Preamplifier PCB Board Module 8002060
Used.
Complete assy. Includes all RCA/DIN sockets.
Tested working 2/02
Condition EX
Part# 8002060
11,1

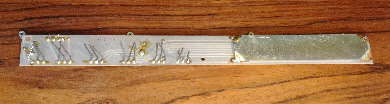

Beomaster 3000 Output Stage Transistor PCB Board 8002064
Used.
Lettering on board 6140121B
Tested working 6/14
Condition EX
Part# 8002064
11,1

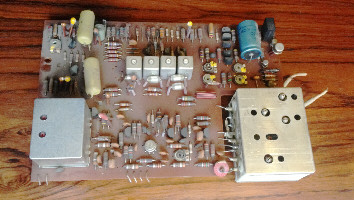

Beomaster 3000 Tuner Frontend and IF PCB Board 8002058,8050045 Complete assy.
Used.
Includes Frontend module 8050045 and IF board 8002058
Tested working 6/14
Condition EX
Part# 8002058,8050045
11,1
